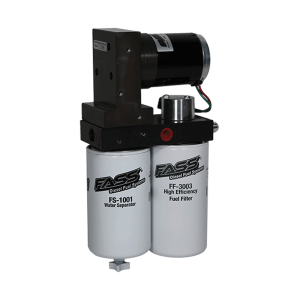

FASS® 220GPH Titanium Series Fuel Air Separation System | TS F14 220G |1999-2007 7.3L/6.0L Ford Powerstroke
The Titanium Series diesel fuel lift pump for your 1999-2003 7.3L Ford Powerstroke and 2003-2007 6.0L Ford Powerstroke was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 220 gallons per hour and backed by our limited lifetime warranty the Titanium Series lift pump is capable of supporting your Ford Powerstroke diesel engine with enough fuel for aggressive tuning and fuel system upgrades.
Important Note:This system bypasses the factory fuel pump.
- Super Extreme HP (900-1200 HP)
- 220GPH @ 55 PSI
- 3 Micron Filtration Rating
- 30K Mile Filter Life Expectancy
- Complete Replacement Fuel Pump
- Removes Water, Air & Debris From Fuel
- Increases Efficiency, Performance & Smoother Idle
- Optional Electric Heater & Fuel Pressure Gauge Port
- Protects & Extends The Life Of Your Fuel System & Injectors
FASS Silencing Technology (FST)
Was developed by the engineering team here at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation diesel lift pumps. By using radius cuts, tighter tolerances on all gears and a high quality military Spec'd Coating over the aluminum base, FASS Fuel Systems was able to develop the quietest fuel air separation system on the market.
Performance Radius Cuts (PRC)
Are an advanced machining technique used to improve the flow of fuel through the diesel lift pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnate fuel pockets from forming within the corner of a 90 degree bend. FASS Fuel Systems Titanium Series Diesel Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
Mass Flow Return (MFR)
Technology is used to continually "polish" your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly moved and cleaned, guaranteeing that your diesel truck always has the freshest and cleanest fuel possible.
Bolt On Bracket Mounts
The latest update we have made to our Titanium Series lift pumps. Old mounting styles required drilling or welding when mounting your new pump. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.
A Titanium Series lift pump also offers advanced filtration benefits that will help protect your Powerstroke's injection systems, effectively extending the life of both your Injection Pump and Injectors. These Benefits include an improved filtration rating of 3 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both drivers and high performance applications when looking to improve either fuel economy or increase horsepower/torque.
The Titanium Series diesel fuel pumps are the superior fuel pump and filtration system, in the diesel industry. This is because here at FASS Fuel Systems we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door. By doing this we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Fuel Systems.
- TS F14 220G
- TS F14 220G
- FASS Diesel Fuel Systems®
- Fuel & Oil System | 2003-2007 Ford Powerstroke 6.0L - Lift Pumps & Fuel Tank Sumps | 2003-2007 Ford Powerstroke 6.0L - Lift Pumps | 2003-2007 Ford Powerstroke 6.0L
- 2003-2007 Ford Powerstroke 6.0L Parts - Fuel & Oil System | 2003-2007 Ford Powerstroke 6.0L - Lift Pumps & Fuel Tank Sumps | 2003-2007 Ford Powerstroke 6.0L
- 1999-2003 Ford Powerstroke 7.3L Parts - Fuel System & High Pressure Oil Pumps | 1999-2003 Ford Powerstroke 7.3L - Lift Pumps | 1999-2003 Ford Powerstroke 7.3L
- Shop By Part Category - Injectors, Lift Pumps & Fuel Systems - Lift Pumps
- Item Requires Shipping
- 32.0 lbs.
- W18.0000” x H14.0000” x L11.5000”
