KC300x 7.3 Powerstroke Stage 1 Turbo | 302523 | 1999.5-2003 Ford Powerstroke 7.3L

Features:

• 100% drop in turbo
• 4" ported housing with anti-surge for high flow
• 7x7 sxe style compressor wheel with extended tip technology
• SXE style turbine wheel
• Big Head Wastegate Actuator for elevated boost control
• High Flow deleted EBPV outlet flange
• Reliable Journal Bearing Design (Rebuildable)
• Comes with all gaskets and orings to install
• Comes with new 4" intake boot

This is a journal bearing turbo with a Borg Warner 300sxe Style turbine wheel, modified to fit inside a drop in ready Super Duty turbo.

This turbo will surprise you at how well it runs! We have torture tested it for longevity, proven its capability on the dyno and at the Race Track. The .91 A/R Housing was proven to spool up faster AND make more top end power when compared to either previous option.

RECOMENDED FOR BEST RESULTS:

NOTES:

**EXHAUST BRAKES: We get asked a lot about exhaust brakes and if they work with our turbos. We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues. These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking. This can be hard on a turbo and motor and is not recommended. It will be up to the customer to verify fitment and functionality.**

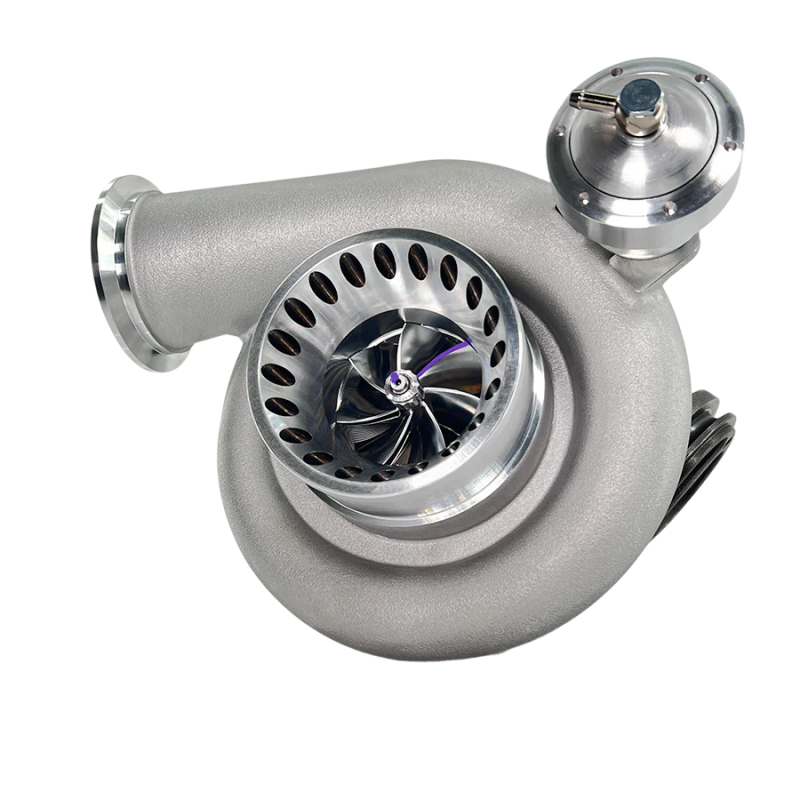

**Picture is of a polished cover, these typically come sand cast unless specifically requested. You may get a polished unit depending on stock. Updated pics coming soon. You can add a polished cover for an additional $250**

**Two week lead time on all polished covers**

**Our turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although our turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment**
